Design System: BJAC Computer Aided Design System
Equipment Xchange LLC Now Supplying New Shell & Tube Heat Exchangers
All heat exchangers meet the requirements of TEMA and can be designed to the ASME Section VIII Division 1 or Divison 2 Codes. Heat exchangers can be fabricated in all TEMA configurations, from single pass to multi-pass to "U" tube configurations, with or without removable bundles. Heads can be fabricated using traditional bonnets, or with channels to facilitate cleaning the tube side. Impingement protection is available to prevent wear of the tubes on inlet connections. Several types of supports are available such as: saddles for horizontal units and lugs for vertical units.
At Equipment Xchange LLC, we take care to provide our customers high quality services personalized for their unique needs. We are available to assist you in your search for NEW Shell & Tube Heat Exchangers. Contact Luis Mercado for all your Heat Exchanger requirements.

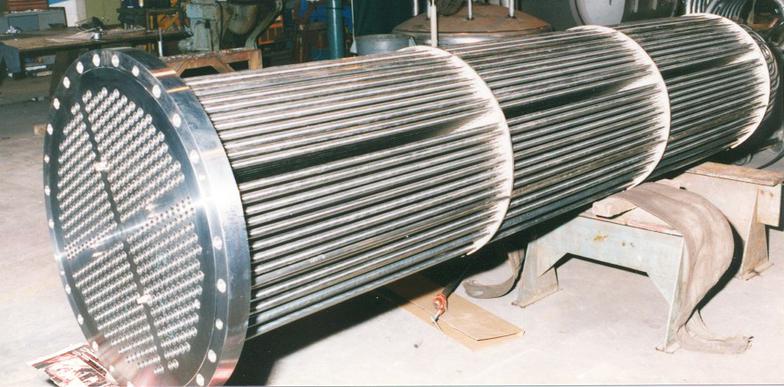

Tube sizes are available from 5/8" O.D. to 1-1/2" O.D. Tube sheets are drilled, reamed, and double serrated according to specifications. Tube to tube sheet joints are roll expanded, obtaining proper tube wall reduction. Seal and strength welded joints are available through the TIG welding process.
All heat exchangers meet the requirements of TEMA and can be designed to the ASME Section VIII Division 1 or Divison 2 Codes. Heat exchangers can be fabricated in all TEMA configurations, from single pass to multi-pass to "U" tube configurations, with or without removable bundles. Heads can be fabricated using traditional bonnets, or with channels to facilitate cleaning the tube side. Impingement protection is available to prevent wear of the tubes on inlet connections. Several types of supports are available such as: saddles for horizontal units and lugs for vertical units. Designs are certified and authorized by the American Society of Mechanical Engineers (ASME) to design and manufacture to boiler and pressure Code, Section VIII, Division 1 and Division 2
Engineering and design available: Contact Luis Mercado for all your Heat Exchanger Requirements. lmercado@exllc.com
Ferrous Grades:
Carbon & Low Alloy Steels
Heat Treated Steels
High Alloy Steels
Austenitic Stainless:
300 Series; H, S, L, LN, LMN
904L
Duplex Stainless:
2205
7 MO Plus
Non Ferrous Grades:
Copper Alloys
Nickel Alloys
Titanium
Zirconium
AL6XN
